  • TLR Gap Mod - Full Aluminum Pan

    Since I've got a few emails, for more of these, I did a small 5 piece run and have 4 left to sell. Unfortunately the price has gone up a slight amount as this run cost me more to have produce. It has a product to do with the shop underestimating material cost and production time last time and the smaller part run. Either the case, I have sold 12 of these to date and everyone is quite pleased with the fitment so there are some members that can vouch for the quality.

    As before, this sale will include the sheet metal pan ONLY. Once received one must be mechanically inclined enough to affix the piece to the sub-frame with your choice of fastener. I suggest you also purchase some Velcro material for help in securing the ECU; it will also aid in some vibration isolation. The part must be gently finessed into position to avoid scratching the sub-frame excessively. I assure you it will go in there, with little effort, so just take your time. Once you have it in there, shift it until it matches up, clamp it in place and mark your holes. The trunk release cable is passed through the hole provided, the connector with the boot slips over the feature in the floor, and the rectifier bolts in the provided holes; now outside of the tail. Take your time and reference the pictures in this thread. The (10) holes provided are sized to clear #8 screws. I chose to use #8-18 x 0.375" self tapping pan head screws; the subframe drilled with a #29 drill (0.136")

    Currently I have 4 left.

    Price: $85 + (3% for paypal fee's) + shipping = Your price.

    PayPal: [email protected]

    Shipping follows time zones.
    EST: $15
    CST: $18
    MST/PST:$20

    Please PM me with your details.

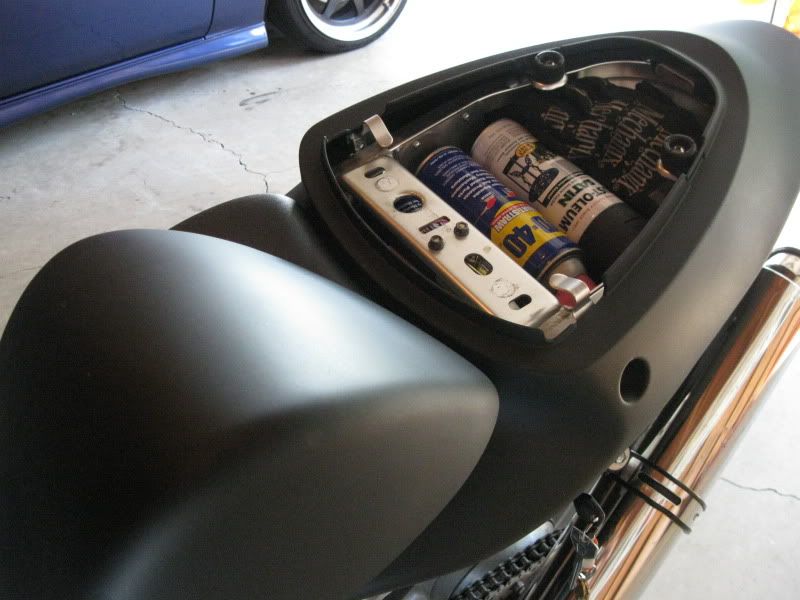

    Man, look at that spacious trunk. Notice, that's (2) cans of WD-40, some spray paint, and a pair of gloves; and there is still room to spare

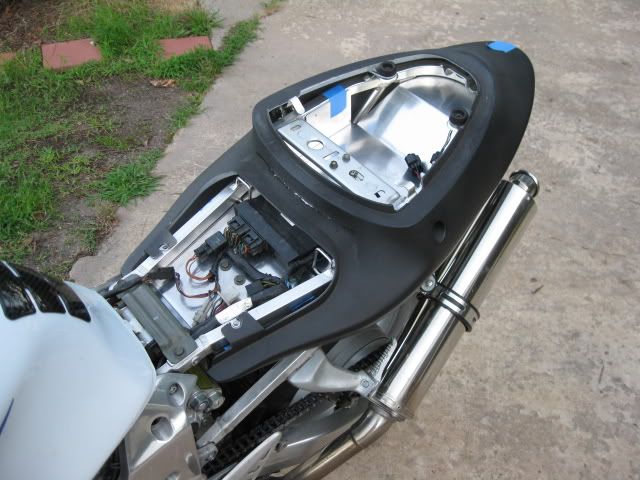

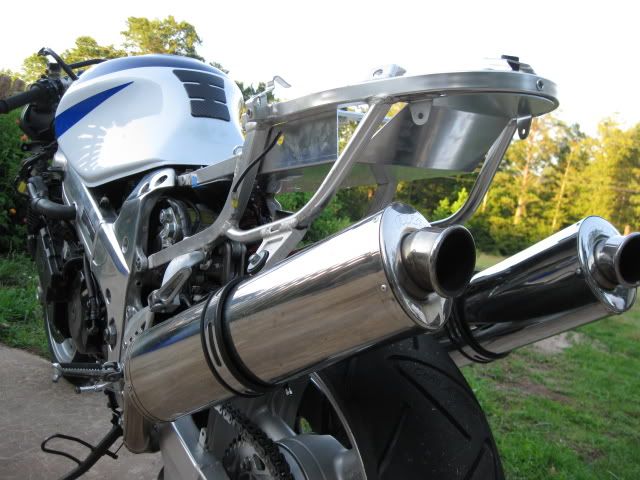

    Here are some shots without the body work in place.

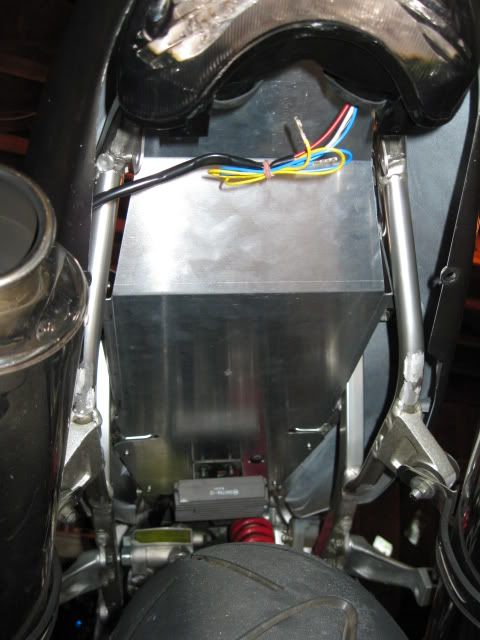

    Here are some shots from below



  • #2
    Re: TLR Gap Mod - Full Aluminum Pan

    Hey man its a great product thanks my ass needed some room
    2003 TL1000R Yellow/Black
    Full Carbon M4 Exhaust, Marchesini's 5 Spoke Magnesiums, SuperSprox 17-41 , LE Penske Rear, Scotts Steering Damper, .90kg Fork Springs, Race Tech Gold Valves, Fp Folding Tactical Levers , D3 Clip ons & Grips, Pc 3 Dynojet , Galfer SS Brake & Clutch Lines, K&N Filter, Joe V Mod, Pair Valve Mod, Fender Eliminator, Speedohealer, GI Pro Atre , Zero Gravity Dubble Bubble, Corbin Seat,(Vans CCC,Plate,Triple,Rear Brake Reservoirs,1mm Swingarm)

    Comment


    • #3
      Re: TLR Gap Mod - Full Aluminum Pan

      ^ nice! Thanks for the review! Any pictures of the install?

      Comment


      • #4
        Re: TLR Gap Mod - Full Aluminum Pan

        ill have to get some when i get it all back from powder
        2003 TL1000R Yellow/Black
        Full Carbon M4 Exhaust, Marchesini's 5 Spoke Magnesiums, SuperSprox 17-41 , LE Penske Rear, Scotts Steering Damper, .90kg Fork Springs, Race Tech Gold Valves, Fp Folding Tactical Levers , D3 Clip ons & Grips, Pc 3 Dynojet , Galfer SS Brake & Clutch Lines, K&N Filter, Joe V Mod, Pair Valve Mod, Fender Eliminator, Speedohealer, GI Pro Atre , Zero Gravity Dubble Bubble, Corbin Seat,(Vans CCC,Plate,Triple,Rear Brake Reservoirs,1mm Swingarm)

        Comment


        • #5
          Re: TLR Gap Mod - Full Aluminum Pan

          oh nice! Well shoot some over, I'd like to check it out. I saw another one on here and the guy had made some tool holder pockets; thought that was a cool idea.

          Comment


          • #6
            Re: TLR Gap Mod - Full Aluminum Pan

            nicely done

            Comment


            • #7
              Re: TLR Gap Mod - Full Aluminum Pan

              Only 3 left guys! Thanks Spyrious and Carterink!

              Comment


              • #8
                Re: TLR Gap Mod - Full Aluminum Pan

                i want one like now ! no bull ! email me please ! at [email protected] i really want one and would like to make arrangements my name is dan. cheers man

                Comment


                • #9
                  Re: TLR Gap Mod - Full Aluminum Pan

                  Originally posted by beast tamer View Post
                  i want one like now ! no bull ! email me please ! at [email protected] i really want one and would like to make arrangements my name is dan. cheers man
                  Did I steer you here from YouTube?

                  If so, welcome

                  Good luck with all your mods.

                  It's a good crowd here... you'll love it.
                  sigpic

                  Comment


                  • #10
                    Re: TLR Gap Mod - Full Aluminum Pan

                    i want one too...but in plastic or fiber glass..anyone making those?

                    Comment


                    • #11
                      Re: TLR Gap Mod - Full Aluminum Pan

                      Originally posted by beast tamer View Post
                      i want one like now ! no bull ! email me please ! at [email protected] i really want one and would like to make arrangements my name is dan. cheers man
                      I'll shoot you an email in a couple minutes. Thanks!

                      Originally posted by GhostMAFIA View Post
                      Did I steer you here from YouTube?
                      If so, welcome
                      Good luck with all your mods.
                      It's a good crowd here... you'll love it.
                      ^X2, everyone is so helpful, and this place is full of priceless information. not to mention there are some really hot bikes on here; GhostMAFIA's is definitely one of them!

                      Originally posted by Saabfan View Post
                      i want one too...but in plastic or fiber glass..anyone making those?
                      None as of right now. The problem with a plastic piece is that I can't afford the molds for injection molding and I'm never all that satisfied with the quality you get from vacuum forming, so I choose sheet metal; not even interested in fiberglass.

                      One thing to consider is that the part weight is 2lbs.

                      Comment


                      • #12
                        Re: TLR Gap Mod - Full Aluminum Pan

                        Thanks Steve! (2) left guys!

                        Comment


                        • #13
                          Re: TLR Gap Mod - Full Aluminum Pan

                          Originally posted by Saabfan View Post
                          i want one too...but in plastic or fiber glass..anyone making those?
                          Might be able to buy one of these then send it off to ip paul and get a mold made for some sweet cf ones....
                          Mike Rock
                          NESBA #506 '98 TLR
                          American cycle performance MRP motorsports

                          Comment


                          • #14
                            Re: TLR Gap Mod - Full Aluminum Pan

                            ^ hey there is an idea! Still guys, we're talking 2lbs...

                            Comment


                            • #15
                              Re: TLR Gap Mod - Full Aluminum Pan

                              Originally posted by S14unimog View Post
                              ^ hey there is an idea! Still guys, we're talking 2lbs...
                              Fiberglass and plastic would end up weighing more then the aluminuim. They would have to be 2-3 times as thick to get the strength, which would kill the weight savings. And if done right, you wont see the thing so the aluminium is great.
                              Mike Rock
                              NESBA #506 '98 TLR
                              American cycle performance MRP motorsports

                              Comment
